Description
- Brand Name: Your Cee
- Hign-concerned Chemical: None
- Certification: None
- Origin: Mainland China
- Continuous Current(A): PWM Vibration Motor Switch Toy Sensor Module
- Type: DC Mobile Phone Vibrator For Arduino UNO MEGA2560 R3 DIY Kit
- Protect Feature: PWM Vibration Motor Switch Toy Sensor Module
- Output Voltage: DC Motor Phone Vibrator for Arduino R3 MEGA2560 Electronic DIY Kit
- Model Number: PWM Vibration Motor Module
- Use: Home Appliance
- Torque: DC Mobile Phone Vibrator For Arduino UNO MEGA2560 R3 DIY Kit
Product Feature:

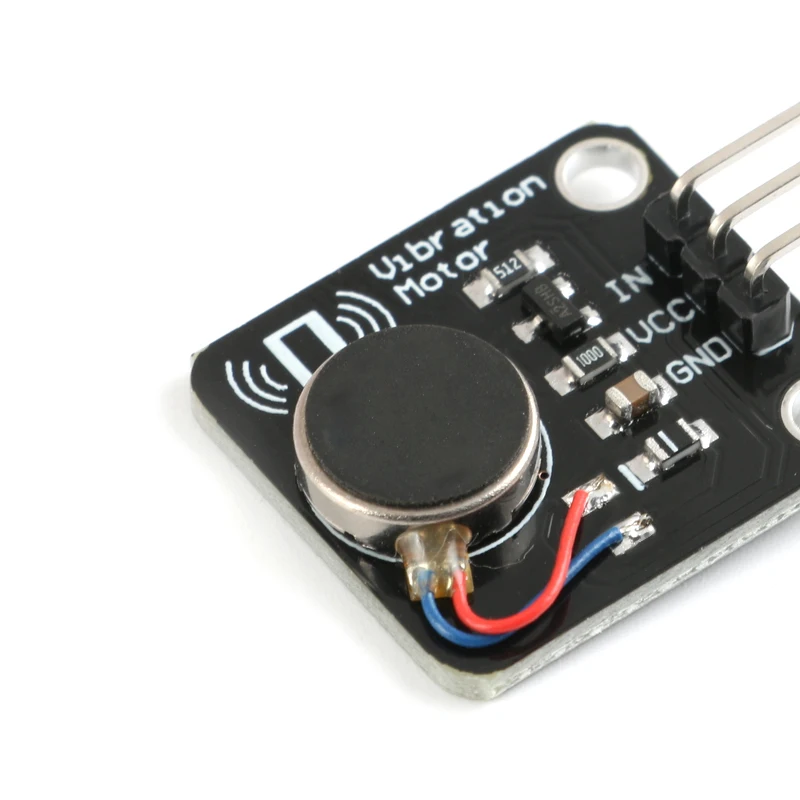

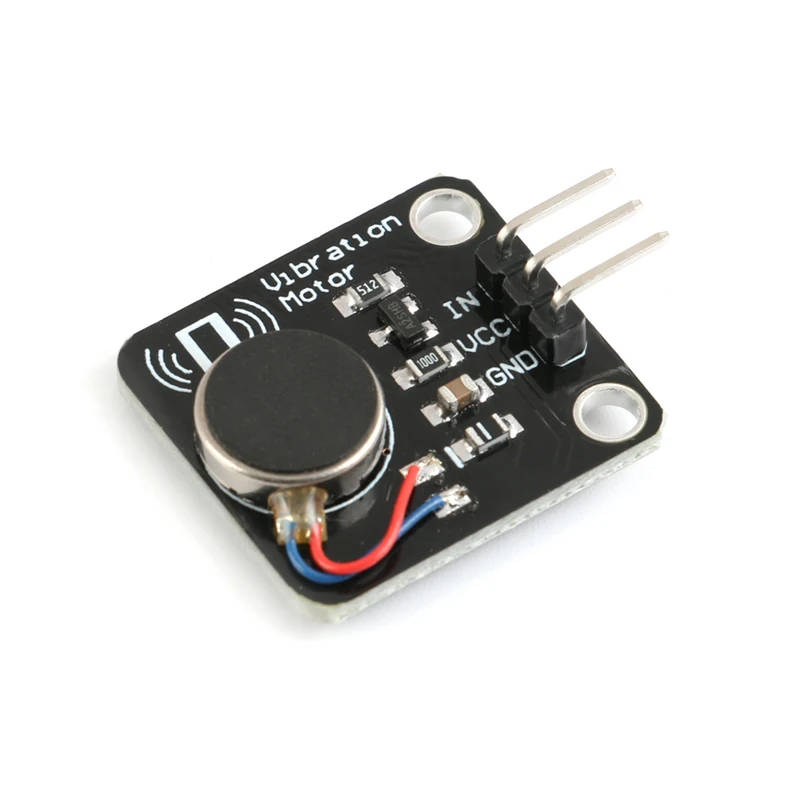

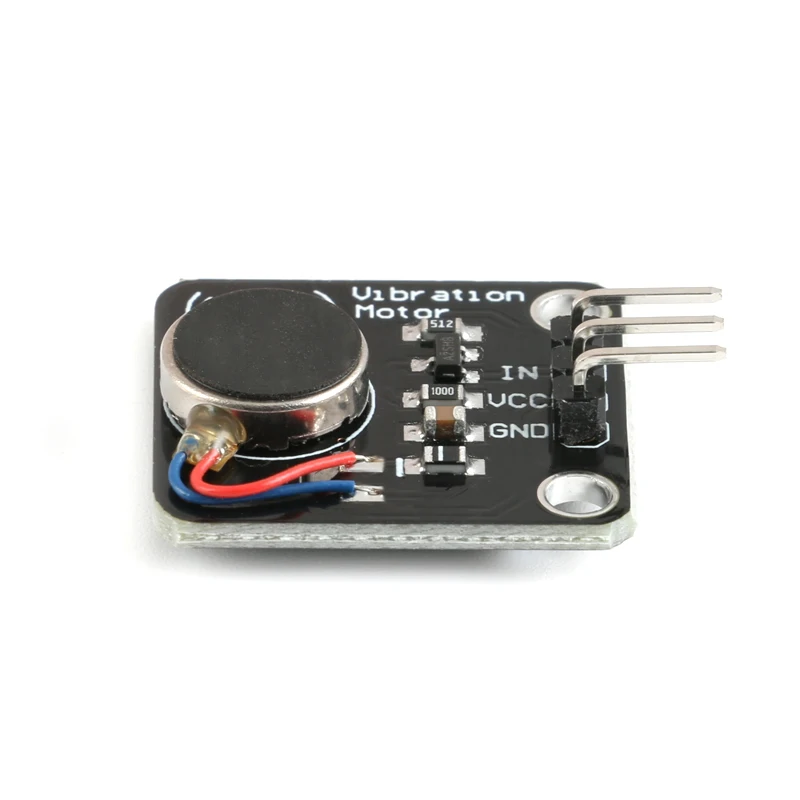

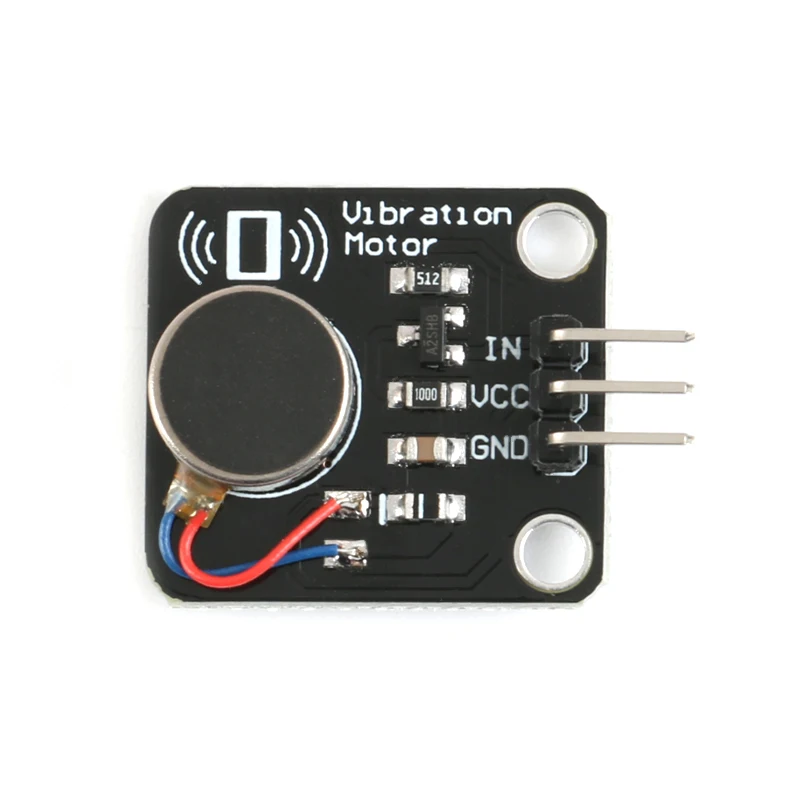

The module adopts high-quality mobile phone vibration motor, the vibration effect is obvious, mos is amplified and driven, and the vibration intensity of the motor can be controlled by PWM. The module can easily complete the conversion of electrical signal to mechanical vibration.
Suitable for the production of vibration-sensitive interactive products, the wearable smart device vibrates to remind a small vibration motor suitable as a non-audible indicator. When the input is high, the motor vibrates, just like your silent mode phone.
Suitable for the production of vibration-sensitive interactive products, the wearable smart device vibrates to remind a small vibration motor suitable as a non-audible indicator. When the input is high, the motor vibrates, just like your silent mode phone.
Product Parameter:
Rated voltage: 5.0VDC
Working voltage: 3.0 – 5.3VDC
Rated speed: 9000 rpm minimum
Rated current: up to 60 mA
Starting current: up to 90 mA
Starting voltage: DC3.7V
Insulation resistance: 10Mohm
Compatibility: Compatible with R3/ Mega2560
Great for DIY projects
Port: Digital
Pitch: 15mm
Fixing hole: 3mm
Motor: 10mm in diameter and 2.7mm in thickness
Drive: MOS tube high level trigger, low level cutoff
IN is digital high and low input
